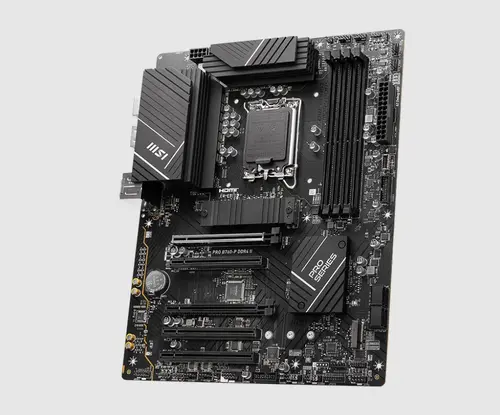

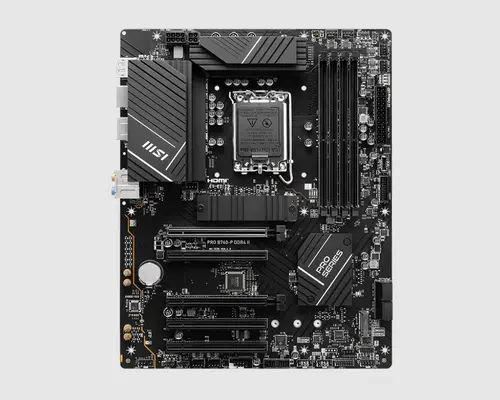

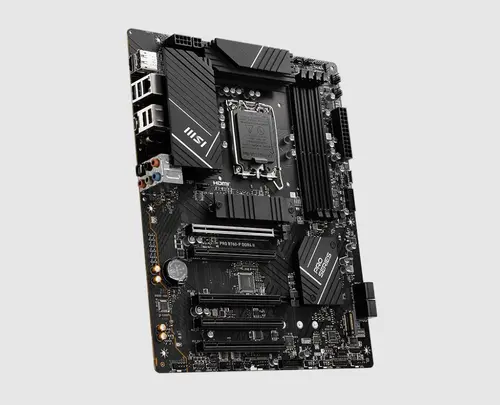

Name: Дънна платка, MSI PRO B760-P II
Brand: MSI
SKU: 911-7E29-009
Price: 121.19 EUR
Availability: InStock

☎ 0886 177 222 ✉ info@xtreme.bg

Доставка· Условия· Рекламация· Контакти·

Вход

⇆Сравни ⚙Сглоби PC Количка

Цена

€121¹⁹ / 237⁰³ лв

с ДДС

* ВЪНШЕН ДОСТАВЧИК - (1 до 3 дни)

* - Стоката е в склад на официалния вносител на марката за България. Времето за доставка е обикновено от 1 до 3 работни дни. Възможно е към момента на завършване на поръчката, продукта да е вече изчерпан. В случай на изчерпана наличност ще се свържем с Вас

К-во:

Добави в Количката

Удължи гаранцията си

+1 година: + 16€

+2 години: + 24€

Код: 911-7E29-009
Категория: Дънни Платки
Гаранция: 3 Години

РЕЙТИНГ

ТВОЯ РЕЙТИНГ

Мнения

Информираме Ви, че въпреки нашите усилия не можем да гарантираме, че публикуваната информация и снимки не съдържат неточности или грешки, които не могат да бъдат правно основание за претенции.

Описание
Детайли
Мнения
ИИ Описание

Vendor_url

https://www.msi.com/Motherboard/PRO-B760-P-DDR4-II/Overview

Model

PRO B760-P II

Graphics

1x HDMI

Support HDMI™ 2.1, maximum resolution of 4K 60Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

Chipset

INTEL B760

Expansion slots

5x PCIe x16 slots

• PCI_E1 slot (From CPU)

• Supports PCIe 4.0 x16

• PCI_E2 slot (From B760 chipset)

• Supports PCIe 3.0 x1

• PCI_E3 slot (From B760 chipset)

• Supports PCIe 4.0 x4

• PCI_E4 slot (From B760 chipset)

• Supports PCIe 3.0 x1

• PCI_E5 slot (From B760 chipset)

• Supports PCIe 3.0 x1

Storage

2x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

4x SATA 6G

Memory type

4x DDR4, Maximum Memory Capacity 128GB

Memory Support 5333(OC) / 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC)

(4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC)

(3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)

(2400(JEDEC)/ 2133(JEDEC)

Max. overclocking frequency:

• 1DPC 1R Max speed up to 5333+ MHz

• 1DPC 2R Max speed up to 4800+ MHz

• 2DPC 1R Max speed up to 4400+ MHz

• 2DPC 2R Max speed up to 4000+ MHz

Supports Dual-Channel mode

Supports non-ECC, un-buffered memory

Supports Intel® Extreme Memory Profile (XMP)

Rear panel I/O

2x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

1x USB 5Gbps Type C (Front)

1x USB 10Gbps Type C (Rear)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

5x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x TBT connector (JTBT, supports RTD3)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 5Gbps Type C ports

Connectors

•1x Front panel audio connector •2x System panel connectors

•1x Chassis Intrusion connector •1x TPM module connector

•1x Serial port connector •1x TBT connector (Supports RTD3)

•1x 4-pin CPU fan connector

•1x 4-pin water-pump fan connector

•5x 4-pin system fan connectors

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Supports S/PDIF output

Lan

Realtek® RTL8125BG 2.5G LAN

BIOS

1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language

Form factor

ATX Form Factor •9.6 in. x 12 in. (244 mm x 304 mm)

Support for Windows® 11 64-bit, Windows® 10 64-bit

Other

Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics

Данни, подадени от официалния вносител за България.

Атрибут	Стойност
Vendor_url	https://www.msi.com/Motherboard/PRO-B760-P-DDR4-II/Overview
Chipset	INTEL B760
OS	Support for Windows® 11 64-bit, Windows® 10 64-bit
Warranty	36 Months
CPU's supported	Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory type	Supports Dual-Channel mode
Memory type	Supports non-ECC, un-buffered memory
Memory type	Max. overclocking frequency:
Memory type	• 2DPC 1R Max speed up to 6000+ MHz
Memory type	4x DDR5, Maximum Memory Capacity 256GB
Memory type	• 1DPC 2R Max speed up to 6400+ MHz
Memory type	Supports Intel® XMP 3.0 OC
Memory type	Supports Dual-Controller Dual-Channel mode
Memory type	• 2DPC 2R Max speed up to 5600+ MHz
Memory type	Memory Support: 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Memory type	• 1DPC 1R Max speed up to 7000+ MHz
Memory type	4x DDR4, Maximum Memory Capacity 128GB
Memory type	• 1DPC 2R Max speed up to 4800+ MHz
Memory type	• 2DPC 1R Max speed up to 4400+ MHz
Memory type	• 2DPC 2R Max speed up to 4000+ MHz
Memory type	Supports Intel® Extreme Memory Profile (XMP)
Memory type	Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)
Memory type	(4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)
Memory type	(3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)
Memory type	(2400(JEDEC)/ 2133(JEDEC)
Memory type	• 1DPC 1R Max speed up to 5333+ MHz
Form Factor	ATX 243.84mmx304.8mm
Form Factor	ATX Form Factor •9.6 in. x 12 in. (244 mm x 304 mm)
Audio	7.1-Channel High Definition Audio
Audio	Realtek® ALC897 Codec
Audio	Supports S/PDIF output
Rear panel I/O	1x Power Connector(ATX_PWR)
Rear panel I/O	1x CPU Fan
Rear panel I/O	2x Front Panel (JFP)
Rear panel I/O	1x Chassis Intrusion (JCI)
Rear panel I/O	1x Front Audio (JAUD)
Rear panel I/O	1x Com Port (JCOM)
Rear panel I/O	1x TPM pin header(Support TPM 2.0)
Rear panel I/O	4x USB 2.0 ports
Rear panel I/O	2x USB 5Gbps Type A (Rear)
Rear panel I/O	1x Pump Fan
Rear panel I/O	4x USB 2.0 (Front)
Rear panel I/O	1x USB 5Gbps Type C (Front)
Rear panel I/O	1x USB 10Gbps Type C (Rear)
Rear panel I/O	4x USB 5Gbps Type A (Front)
Rear panel I/O	2x USB 2.0 (Rear)
Rear panel I/O	2x Power Connector(CPU_PWR)
Rear panel I/O	5x System Fan
Rear panel I/O	1x TBT connector (JTBT, supports RTD3)
Rear panel I/O	2x Addressable V2 RGB LED connector (JARGB_V2)
Rear panel I/O	2x RGB LED connector(JRGB)
Rear panel I/O	4x USB 5Gbps Type A ports
Rear panel I/O	1x USB 5Gbps Type C ports
LAN	Realtek® RTL8125BG 2.5G LAN
Model	PRO B760-P II
Expansion Slots	PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
Expansion Slots	PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Expansion Slots	PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Expansion Slots	5x PCI-E x16 slot
Expansion Slots	PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Expansion Slots	PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Expansion Slots	5x PCIe x16 slots
Expansion Slots	• PCI_E1 slot (From CPU)
Expansion Slots	• Supports PCIe 4.0 x16
Expansion Slots	• PCI_E2 slot (From B760 chipset)
Expansion Slots	• Supports PCIe 3.0 x1
Expansion Slots	• PCI_E3 slot (From B760 chipset)
Expansion Slots	• Supports PCIe 4.0 x4
Expansion Slots	• PCI_E4 slot (From B760 chipset)
Expansion Slots	• PCI_E5 slot (From B760 chipset)
Graphics	Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Graphics	1x DisplayPort
Graphics	Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
Graphics	Support DP 1.4, maximum resolution of 4K 60Hz*
Graphics	1x HDMI
Other	Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort 1.4 – Requires Processor Graphics
Other	RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
BIOS	1x 256 Mb flash •UEFI AMI BIOS •ACPI 6.4, SMBIOS 3.5 •Multi-language
I/O	2x USB 5Gbps Type A (Rear)
I/O	4x USB 2.0 (Front)
I/O	1x USB 5Gbps Type C (Front)
I/O	1x USB 10Gbps Type C (Rear)
I/O	4x USB 5Gbps Type A (Front)
I/O	2x USB 2.0 (Rear)
Storage	4x SATA 6G
Storage	2x M.2
Storage	M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Storage	M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Connectors	1x Power Connector(ATX_PWR)
Connectors	1x CPU Fan
Connectors	2x Front Panel (JFP)
Connectors	1x Chassis Intrusion (JCI)
Connectors	1x Front Audio (JAUD)
Connectors	1x Com Port (JCOM)
Connectors	1x TPM pin header(Support TPM 2.0)
Connectors	4x USB 2.0 ports
Connectors	2x Power Connector(CPU_PWR)
Connectors	1x Pump Fan
Connectors	2x Addressable V2 RGB LED connector (JARGB_V2)
Connectors	2x RGB LED connector(JRGB)
Connectors	5x System Fan
Connectors	1x USB 5Gbps Type C ports
Connectors	4x USB 5Gbps Type A ports
Connectors	•1x Front panel audio connector •2x System panel connectors
Connectors	•1x Chassis Intrusion connector •1x TPM module connector
Connectors	•1x Serial port connector •1x TBT connector (Supports RTD3)
Connectors	•1x 4-pin CPU fan connector
Connectors	•1x 4-pin water-pump fan connector
Connectors	•5x 4-pin system fan connectors
Тегло	0.00кг

Данни, автоматично извлечени от интернет. Точността не е гарантирана. За подробна информация, моля, свържете се с нас или посетете страницата на производителя.

Атрибут	Стойност
Сокет	LGA1700
Форм фактор	ATX
Чипсет	Intel B760
Тип памет	DDR5
Слотове за памет (count)	4
Максимална памет (GB)	192
M.2 слотове (count)	2
SATA портове (count)	4
PCIe x16 слотове (count)	2
Вграден Wi-Fi	Не
Скорост на LAN	2.5 Gbps
USB-C портове (count)	1
RGB подсветка	Не
Тегло	0.00кг

Дънна платка MSI PRO B760-P II – LGA1700, DDR5, ATX

Проектирана за професионалисти и напреднали потребители, MSI PRO B760-P II предлага изключителна стабилност и висока производителност за Intel процесори от 12-то, 13-то и 14-то поколение. С поддръжка на DDR5 памет, PCIe 4.0 слотове и усилено захранване, тази платка е идеалната основа за надеждна работна станция или гейминг конфигурация.

Ключови Предимства

Поддръжка на DDR5 — По-бърза скорост на трансфер и подобрена многозадачност с двуканална DDR5 RAM.
PCIe 4.0 готовност — Свържете най-новите видеокарти и NVMe SSD за светкавична производителност.
Подобрено захранване — 12+1+1 Duet Rail VRM осигурява стабилно напрежение за взискателни процесори.
Разширена свързаност — Включва 2.5G LAN, USB 3.2 Gen 2 Type-C и множество M.2 слотове.

Технически Спецификации

Спецификация	Стойност
Сокет	LGA1700
Форм фактор	ATX
Чипсет	Intel B760
Тип памет	DDR5
Слотове за памет	4
Максимална памет	192 GB
M.2 слотове	2
SATA портове	4
PCIe x16 слотове	2
Вграден Wi-Fi	Не
Скорост на LAN	2.5 Gbps
USB-C портове	1
RGB подсветка	Не
